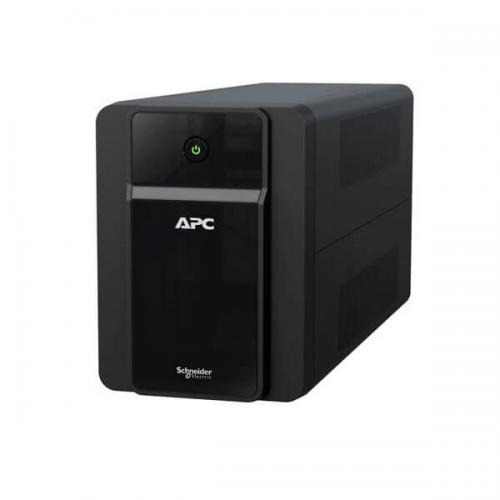

APC BX1100I-IN 1100VA 230V Back-UPS
- 1100VA/660W compact tower Back-UPS
- Automatic Voltage Regulation helps correct utility voltage
- Visual LED and audible alarms for early and easy notifications
- Resettable circuit breaker helps protect UPS during overload conditions
Original price was: ₹10,100.00.₹6,899.00Current price is: ₹6,899.00.
Feature
This APC Back-UPS provides power backup and surge protection for home and home office, enabling consistent and reliable connectivity during unstable power conditions. With the 1100VA line interactive UPS, the essential electronic devices will have a stable network connection, reliable uptime, and clean power. The tower UPS includes a 3-pin India 6A input plug, four 3-pin India 6A battery backup and surge-protected outlets, and one 3-pin India 6A surge-protected outlets. This generator-compatible UPS has a surge energy rating of 225 Joules. The Auto-start function automatically restarts the UPS when the mains recover after a complete battery discharge. The BX UPS performs periodic battery self-tests to detect early battery replacement needs. The Back-UPS supports wider input voltage and frequency ranges, allowing it to power loads through significant fluctuations without relying on battery backup. The UPS has a two-year warranty, and the built-in lead-acid battery has a one-year warranty.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
Battery Saver
Extends battery life by preventing unnecessary discharges while the UPS is on battery.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Generator compatibility
NAllows you to recharge your battery while on generator power.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

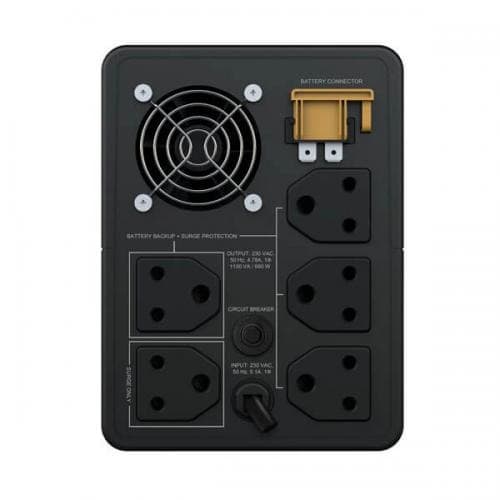

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Availability
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery
managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Manageability
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Marketing Features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Key Features
Four battery backed outlets with continuous surge protection and one surge only
Battery saver : Increase battery life upto two times. Experience consistent runtime through the battery life.
Separate charging LED
Compatible with low power loads. eg : WiFi Router, DSL modem
| Model Number | BX1100I-IN |
| Main Input Voltage | 230 V |
| Rated power in W | 660 W |
| Rated power in VA | 1100 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | India 3-pin 6A 6 A |
| Cable length | 1.2 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | 24 V |
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| General | |
| Provided equipment | 1.2 m |
| Max runtime | 0.2 min |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 297 mm |
| Width | 495 mm |
| Depth | 235 mm |
| Net weight | 9.2 kg |
| mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| Input | |
| Network frequency | 40...70 Hz auto-sensing |
| Plug standard | India 3-pin 6A |
| Input voltage limits | 140...300 V |
| Output | |
| Maximum configurable power in W | 660 W |
| Output frequency | Sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 660 W |
| Maximum configurable power in VA | 1100 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| Conformance | |
| Product certifications | BIS |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 m |
| acoustic level | 45 dBA |
| Communications & Management | |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
| Surge Protection and Filtering | |
| Surge energy rate | 255 J |
| Packing Units | |
| Unit Type of Package 1 | 1 |
| Package 1 Height | 19.0 cm |
| Package 1 Width | 14.0 cm |
| Package 1 Length | 39.0 cm |
| Package 1 Weight | 8.2 kg |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Q & A
APC BX1100I-IN 1100VA 230V Back-UPS
THE APC BX1100I-IN UPS OUTPUTS 660 WATTS MAXIMUM.
IT DOES NOT SUPPORT A 750 WATT POWER SUPPLY SAFELY.
NO, THE APC BX1100I-IN 1100VA UPS WILL NOT FULLY SUPPORT A 550-WATT POWERED PC. THE UPS IS RATED FOR A MAXIMUM CONFIGURABLE POWER OF 660 W, BUT IT IS RECOMMENDED TO KEEP THE LOAD BELOW 80% OF THE MAXIMUM CAPACITY FOR OPTIMAL PERFORMANCE AND BATTERY BACKUP. A 550-WATT PC MAY PUSH THE UPS CLOSE TO ITS LIMITS, REDUCING EFFICIENCY AND BACKUP TIME.
