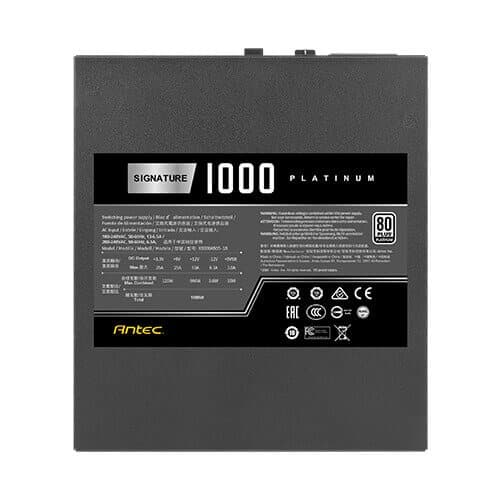

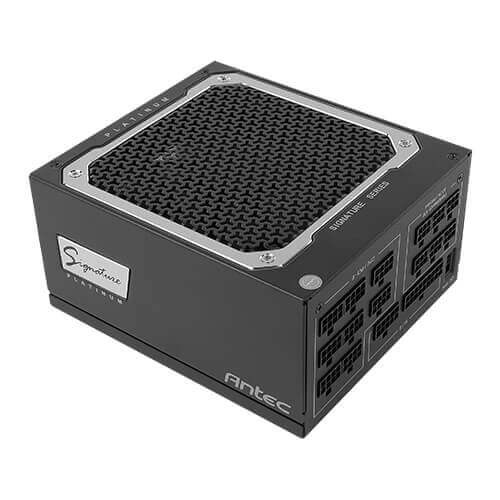

Antec Signature SP1000 1000W Platinum SMPS
2 sold in last 18 hours
Hurry! Over 4 people have this in their carts
- High-wattage PSU (1000W): Ideal for powering high-performance gaming PCs or workstations with demanding power needs.
- 80 PLUS Platinum certified: Delivers high efficiency, reducing energy consumption and saving on electricity bills.
- Fully modular cables: Enables clean and clutter-free cable management within your PC case.
- Silent operation: Features a 135mm fluid dynamic bearing (FDB) fan for quiet operation, with a zero RPM mode for near-silent operation at low loads.
Estimated Delivery: Nov 11 – Nov 15
... people are viewing this right now
Original price was: ₹34,200.00.₹21,089.00Current price is: ₹21,089.00.
Antec Signature Series SP1000, 80 PLUS Platinum Certified, 1000W Full Modular with OC Link Feature, PhaseWave Design, Full Top-Grade Japanese Caps, Zero RPM Mode, 135 mm FDB Silence & 10-Year Warranty
Feature
Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
PhaseWavetm Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Linktm Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

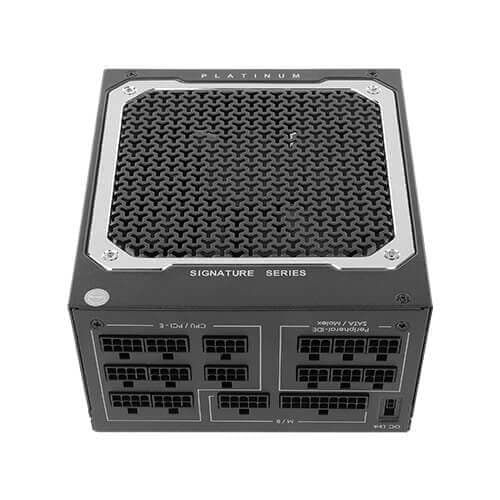

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Connector
| Product Name | SP1000 Platinum |
| Model Name | X8000A505-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 13A ~ 6.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | APFC |
| PFC at half / full load: | |
| >0.95 at AC 110v 60Hz(typical) | |
| >0.90 at AC 230v 50Hz(typical) | |
| Power Good Signal | 100 ~ 500mS |
| Efficiency | At 20% / 50% / 100% load AC 115V internal, |
| the power efficiency should be at least 90% / 92% / 89%. | |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus / TUV / CB [IEC62368 Compliant] / CE / |
| FCC / BSMI / 3C / RCM | |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 8 x 8(6+2) Pin PCI-E | |
| 14 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
| UPC# | 0-761345-11700-5 |
| Net Weight | 2.11 Kgs |
| Gross Weight | 3.93 Kgs |
