| Category | Details |

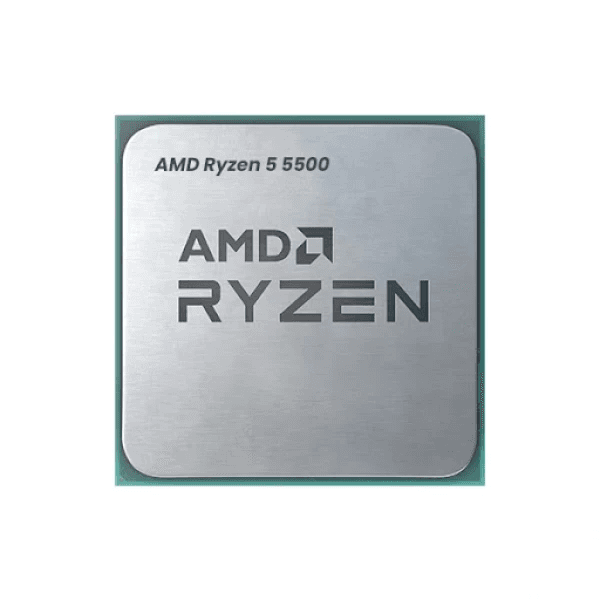

| Name | AMD Ryzen™ 5 5500 |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Mainstream Desktop |
| Regional Availability | Global, China, NA, EMEA, APJ, LATAM |
| Codename | Cezanne |
| Architecture | Zen 3 |
| Cores / Threads | 6 Cores / 12 Threads |
| Max Boost Clock | Up to 4.2 GHz |
| Base Clock | 3.6 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 3 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| Process Technology | TSMC 7nm FinFET |
| Die Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Supported Chipsets | X570, X470, X370, B550, B450, B350, A520 |
| Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE(1–4.2), SSE4A, SSSE3 |
| Max Temperature (Tjmax) | 90°C |
| Launch Date | 04-04-2022 |
| OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Native USB 4 (40Gbps) | 0 |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 | 0 |
| Native SATA Ports | 2 |
| PCIe Version | PCIe 3.0 |
| Native PCIe Lanes | 24 (20 usable) |
| Additional PCIe (Chipset) | X570: 16× Gen3X470: 2× Gen3 + 8× Gen2 |
| NVMe Support | Boot, RAID 0/1/10 |
| Memory Type | DDR4 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Memory Type (DIMM) | UDIMM |
| Memory Specification | Up to 3200 MT/s |
| Max Memory Speeds | 2×1R: 32002×2R: 32004×1R: 29334×2R: 2667 |
| ECC Support | No |
| Graphics | Discrete Graphics Card Required |
| Supported Technologies | AMD StoreMI, Ryzen VR-Ready Premium |
